Suspension Seats

B E A R D



Competition Pro Series
34" Tall x 22" Wide x 26" Deep - view seat dimension guide
Mounting Area: 14" Wide X 18" Front to Back
Built with heavy-duty firm foam
The seat bottom is reinforced with duel Pirelli straps
Slotted for 5 point harness with 2 slots in headrest
Standard removable cushion
Available 2" wider
Available 4" taller
Competition High Back
35" Tall X 22" Wide X 26" Deep - view seat dimension guide
Mounting Area: 14" Wide X 18" Front to Back
Slotted for 5 point harness with 2 slots in headrest
Standard flip cushion
Optional removable cushion
Available 2" wider
Available 4 " taller
Competition Low Back
27" Tall X 22" Wide X 26" Deep - view seat dimension guide
Mounting Area: 14" Wide X 18" Front to Back
Slotted for 5 point harness
Standard flip cushion
Optional removable cushion
Available 2" wider
Available 4 " taller
Competition Layback
22" Tall X 24" Wide X 31" Deep - view seat dimension guide

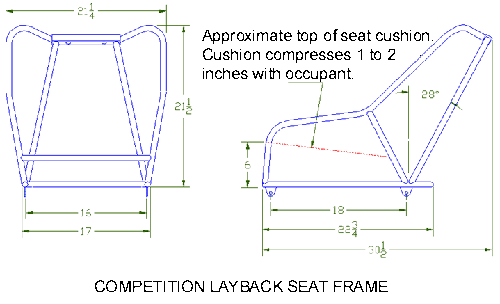

Mounting Area 16" Wide X 18" Front to Back - view frame information
Slotted for 5 point harness
Optional removable cushion



more products from PRP

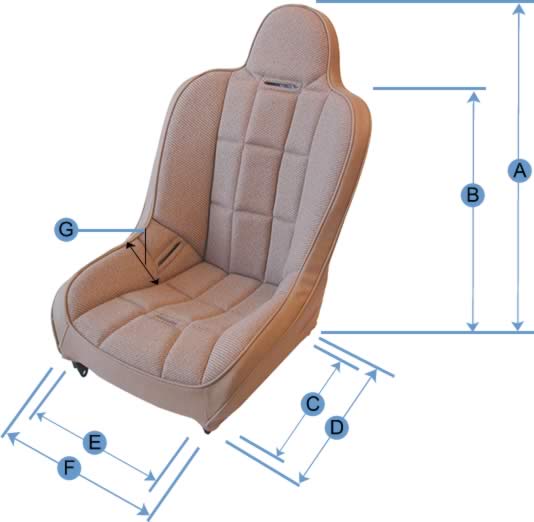

Seat Dimensions Guide


Premier Series
31
24
18
26
14
22
7
Xtra tall Premier
35
28
18
26
14
22
7
Xtra wide Premier
31
24
18
26
16
24
7
Competition Series
35
27
18
26
14
22
10
Roadster
31
24
18
26
12
19
4
Preteen Seat
28
21
16
23
12
19
6
Bench
N/A
24
18
26
24-62
30-68
7
Comp Layback
N/A
22
18
31
16
24
9
Comp Proseries
35
27
18
26
14
22
10
Premier and Competition series are available 2" wider and, or 4" taller. Call about having a custom suspension seat built to your dimension.
